ENGINE SPECS

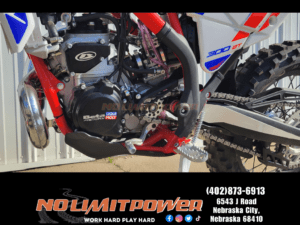

Type: Beta-Built single cylinder, 2-stroke, liquid cooled, with BPV power valve system and counter balancer, electric start with a back up kick starter sold as an option
Bore: 73mm
Stroke: 69.9mm
Displacement: 292.3cc
Compression Ratio: 11.55:1
Exhaust Valve: Beta Progressive Valve (BPV)
Ignition: AC-CDI  Kokusan
Spark Plug: NGK GR7CI8
Lubrication: Electronic Oil Injection
Oil Tank Capacity: 650cc
Carburetor: Keihin PWK 36mm
Clutch: Wet Diaphragm-Style
Transmission: 6-speed
Final Drive: O-ring chain

CHASSIS SPECS

Frame: Molybdenum steel/Parameter-Style w/quick air filter access
Wheelbase: 57.8
Seat Height: 35.8”
Ground Clearance: 12.6”
Footrest Height: 15.4
Dry Weight: 216 lbs. (wet weight, no fuel)
Fuel Tank Capacity: 2.25 US gallons
Front Suspension: 43 mm inverted front fork with adjustable dampening
Rear Suspension: Steel body shock with adjustable rebound and compression
Front Wheel Travel: 10.6”
Rear Wheel Travel: 10.6”
Front Brake: 260mm floating rotor
Rear Brake: 240mm rotor
Front/Rear Rim: 21” (Front) 18” (Rear)
Front/Rear Tire: Soft Enduro Competition
Warranty: 6 month Limited Warranty
